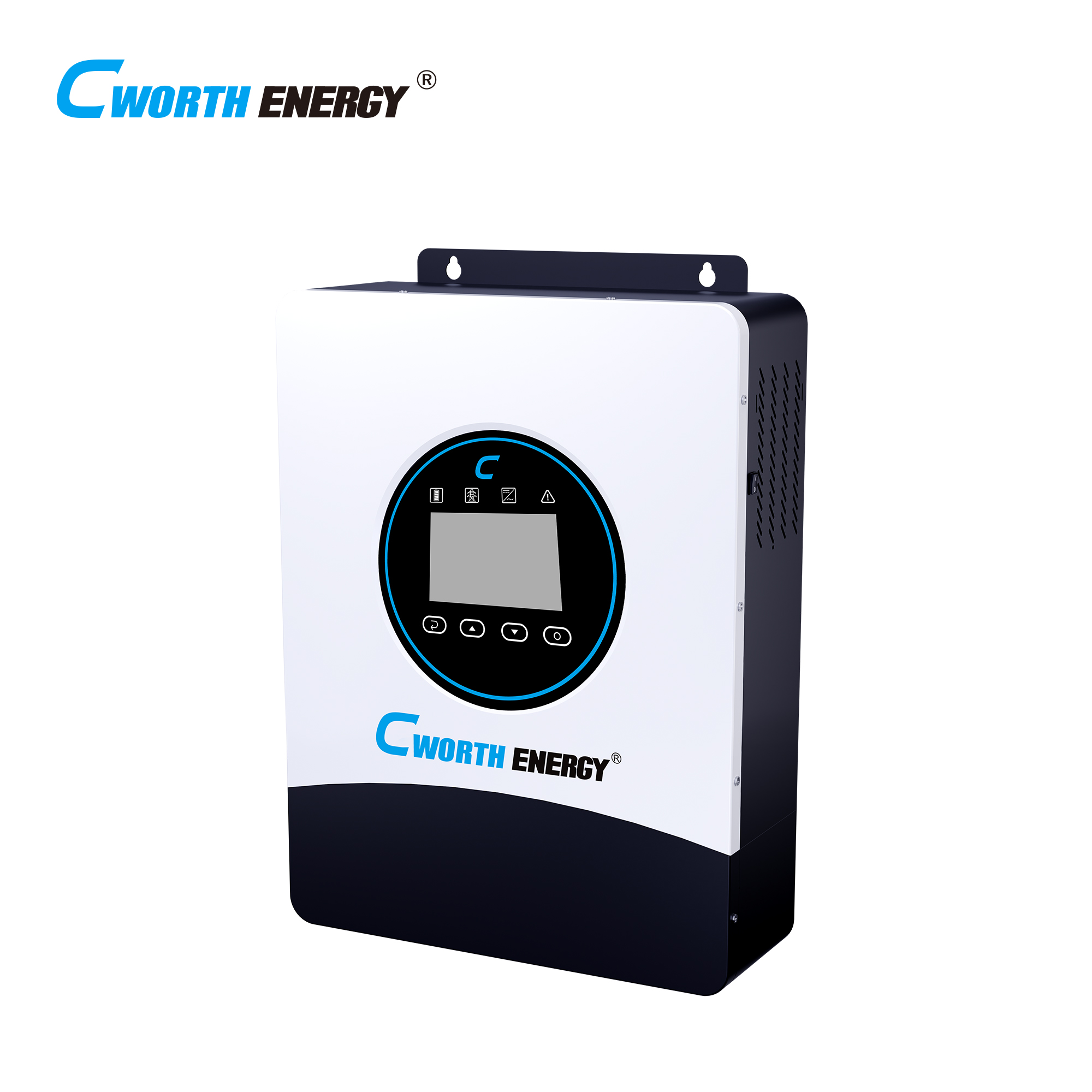

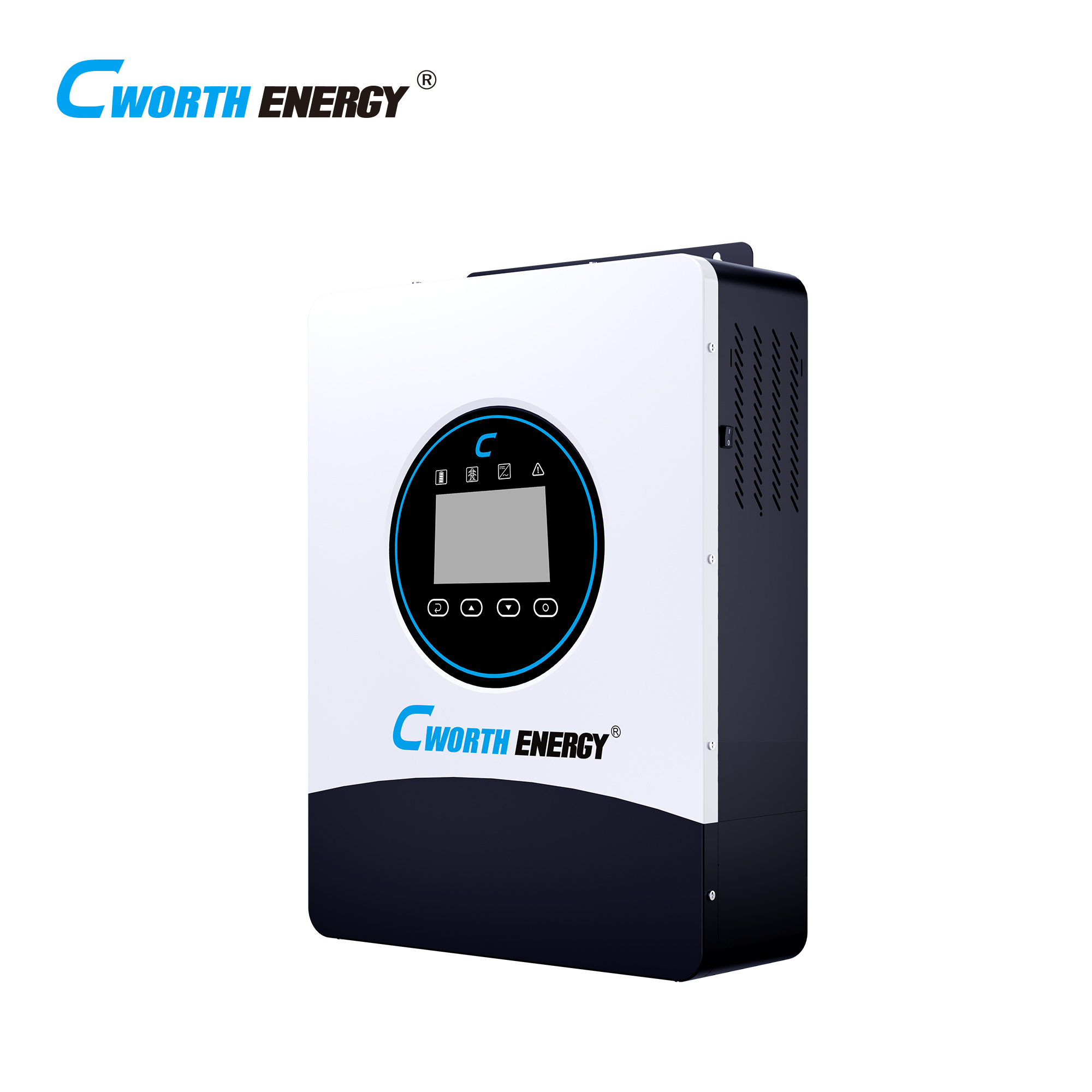

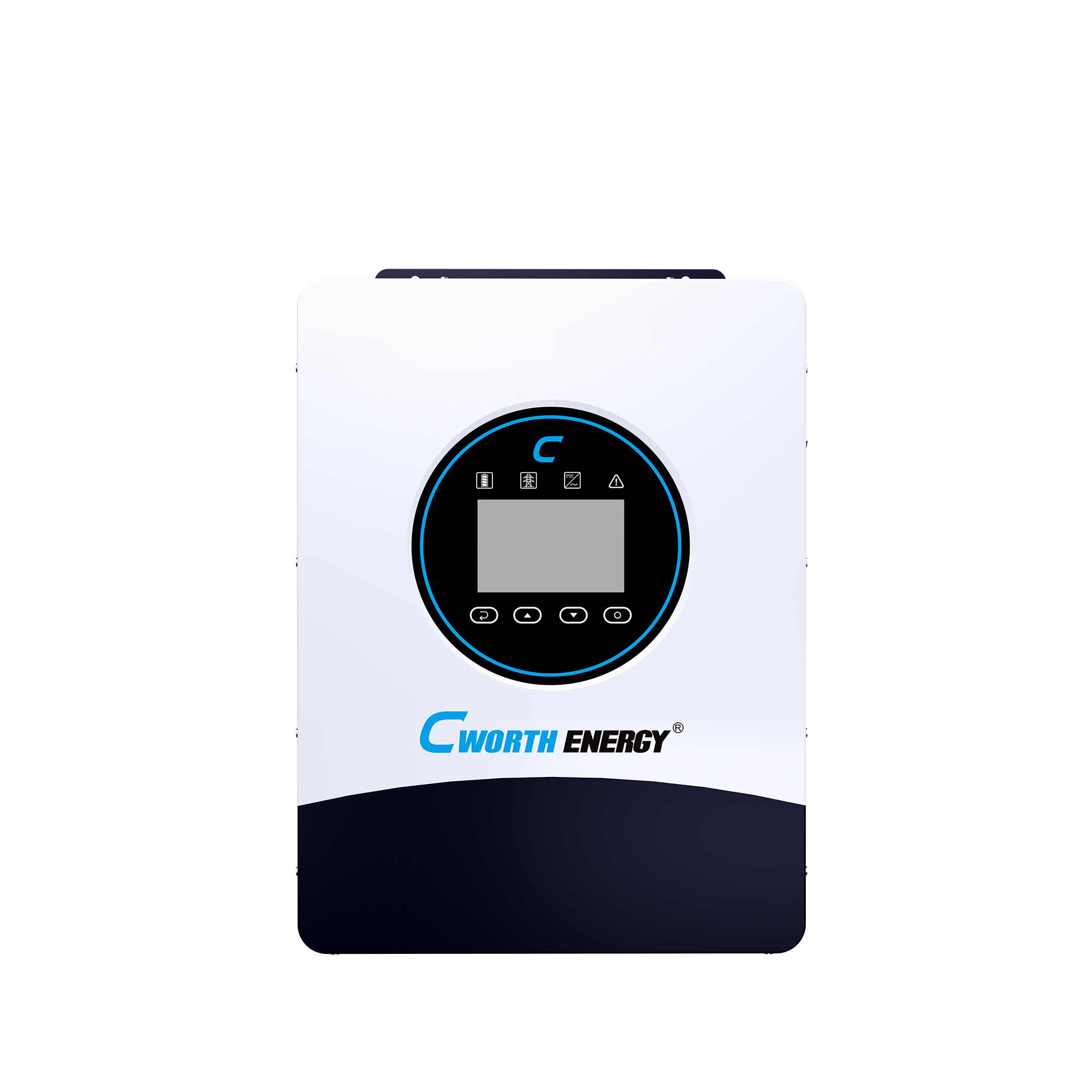

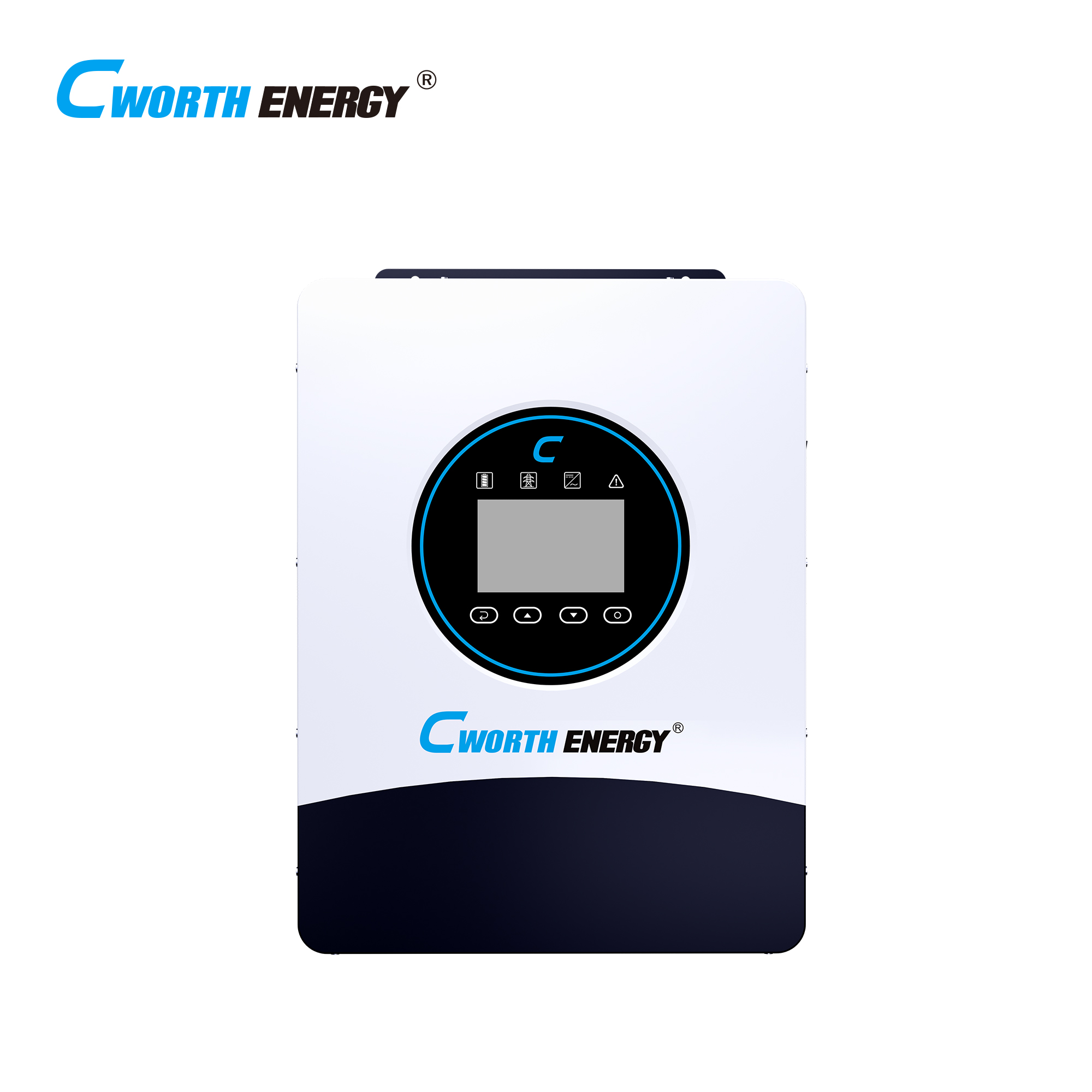

CE-H1.8K-ECO
Cworth Energy
SPECIFICATION：
| Inverter Model | CE-H1.8K-ECO |
| Rated Output Power | 1600W |
| Nominal DC Input Voltage | 12V |
| DC Input | 12V,150A |
| AC Output | 230VAC，50/60HZ，7A |
| AC Input | 230VAC，50/60HZ，7A |
| Max. AC Charging Current | 60A |
| Max.PV Input Power | 2000W |
| Max.PV Voltage(VOC) | 500V |
| MPPT Tracking Range | 60-500V |
| Waveform | Pure Sine Wave |
| Max. PV Charging Current | 100A |
| Operating Temperature | -15-60℃ |
| Ingress Protection | IP21 |
