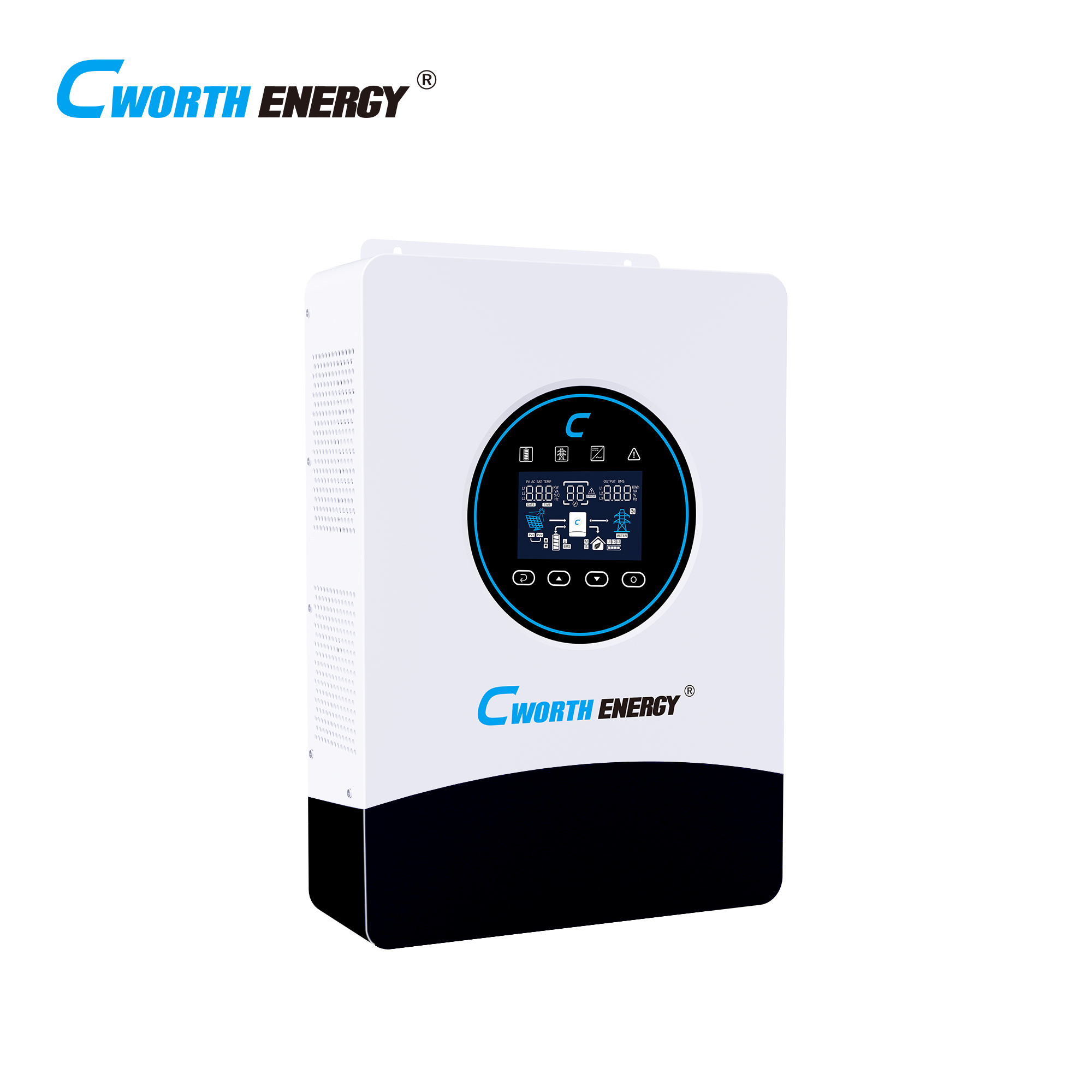

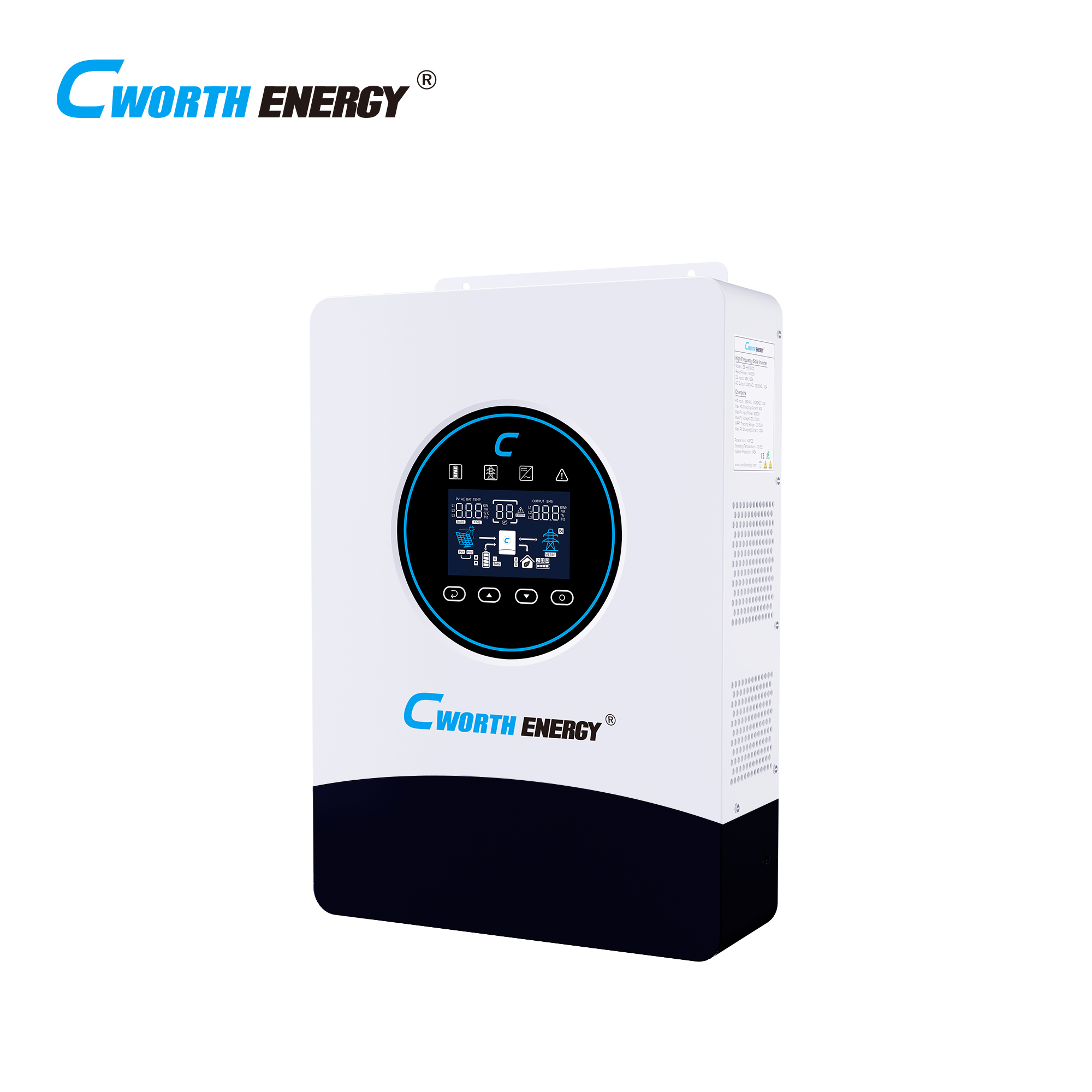

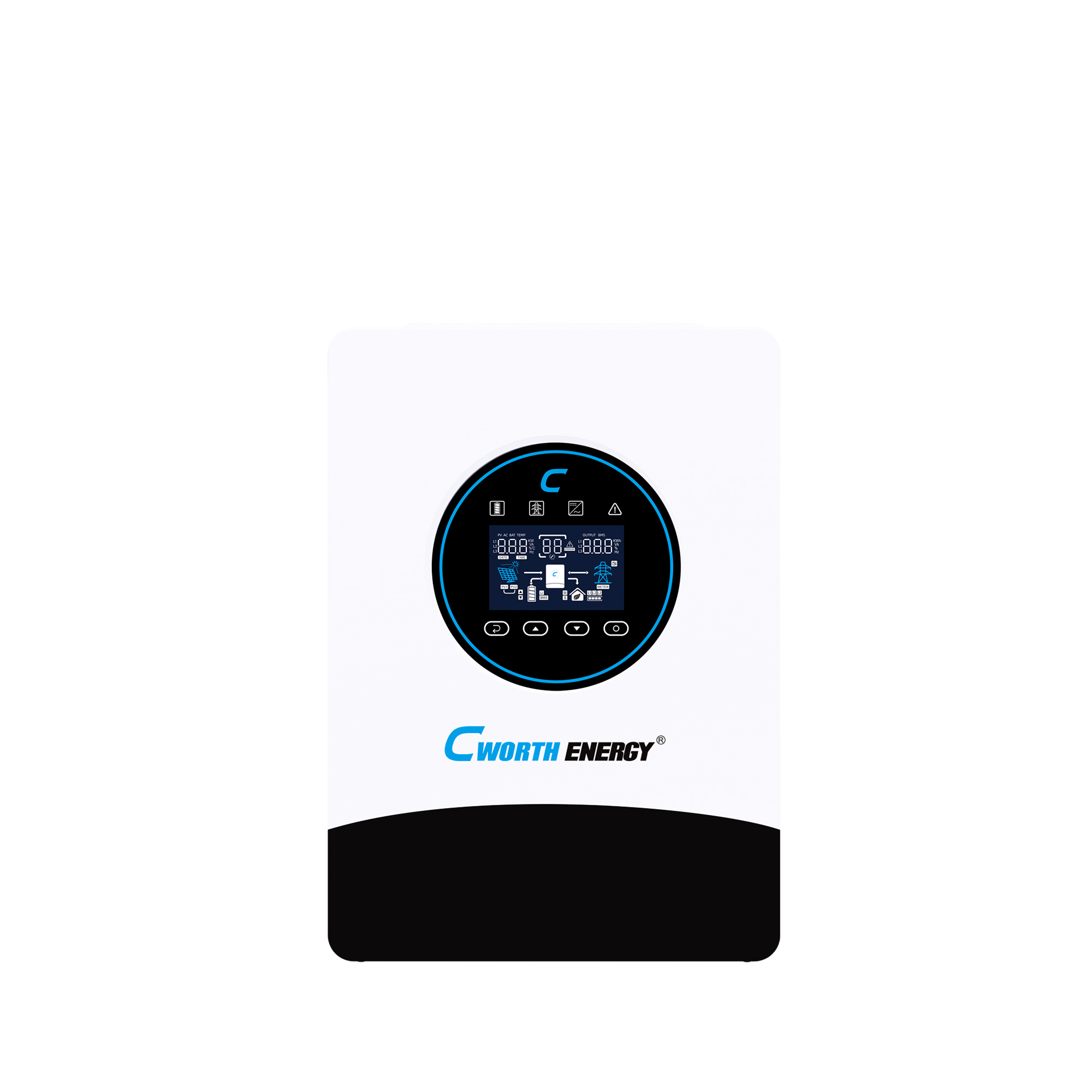

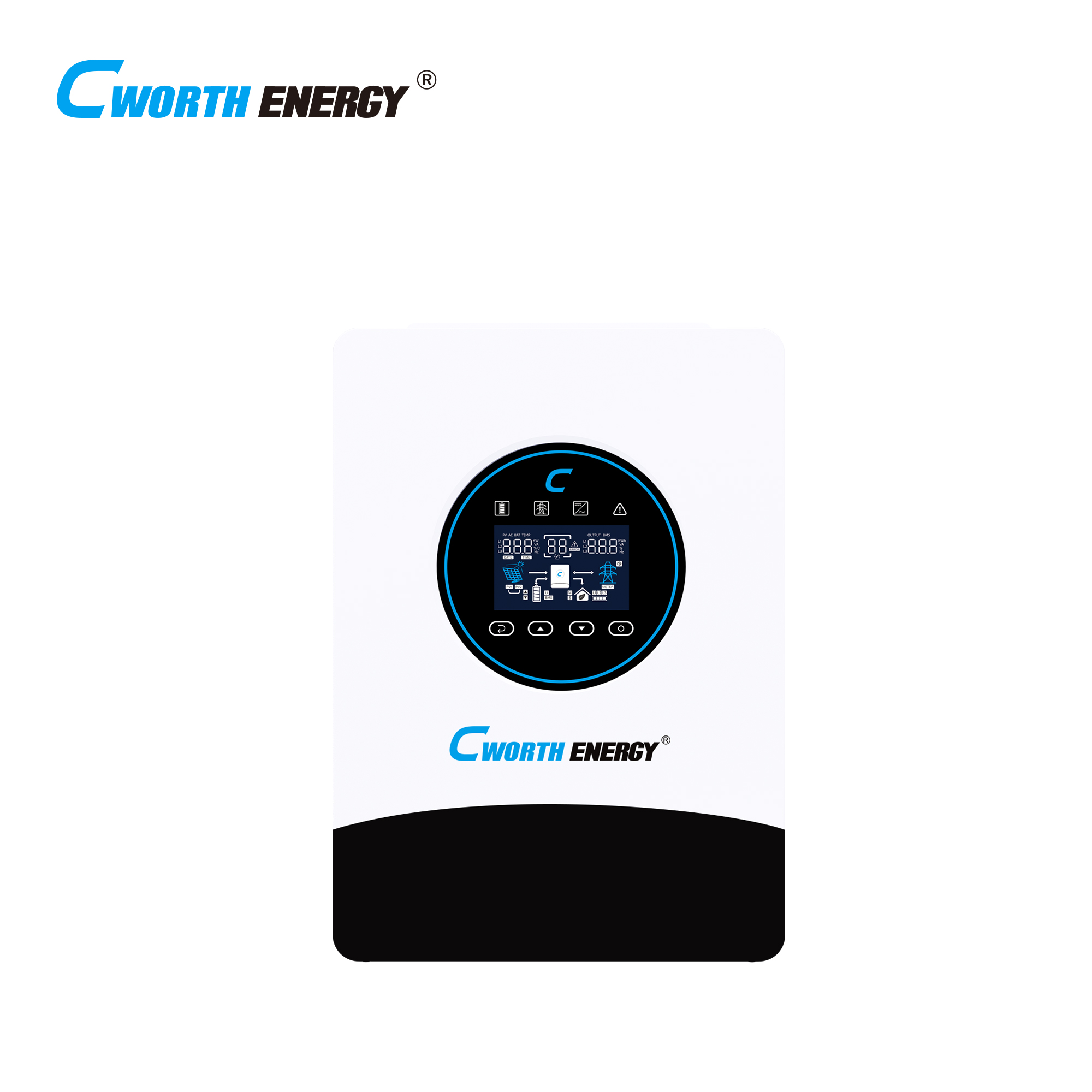

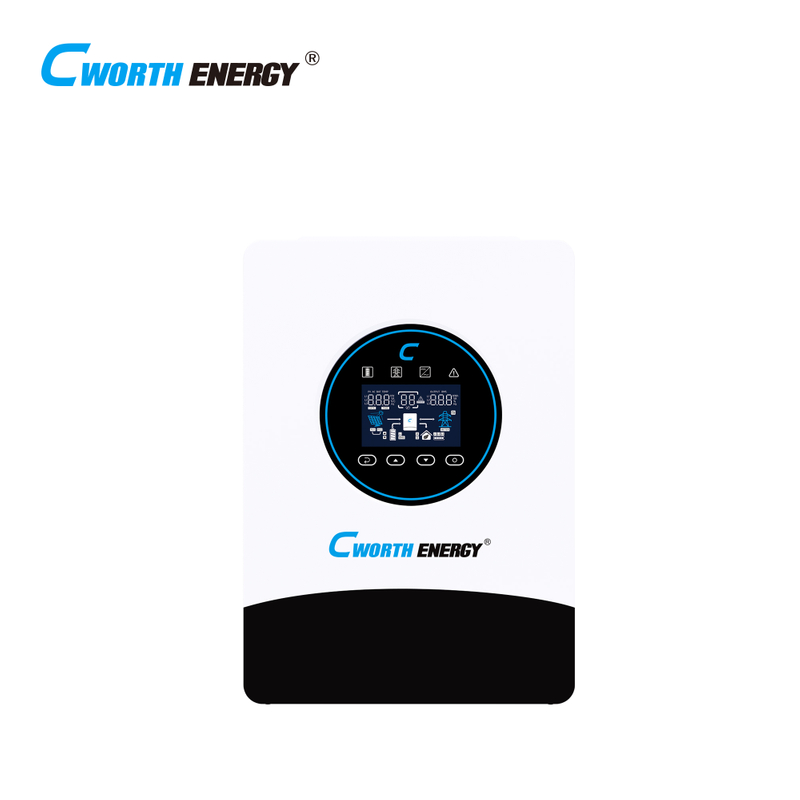

High Frequency Solar Inverter 3.6KW

Availability:
Quantity:
Inquire Add to Basket

  • CE-H3.6K-ECO

  • Cworth Energy

CE-H3.6K-ECO 宣传海报（2026.01.08）


SPECIFICATION：

Inverter Model CE-H3.6K-ECO
Rated Output Power  3600W
Nominal DC Input Voltage 24V
DC Input 24V,150A
AC Output 230VAC，50/60HZ，15A
AC Input 230VAC，50/60HZ，15A
Max. AC Charging Current 80A
Max.PV Input Power 3600W
Max.PV Voltage(VOC) 500V
MPPT Tracking Range 120-500V
Max.Solar Current
 17A
Max. PV Charging Current 120A
Operating Temperature -10-50℃
Ingress Protection IP54


Gel battery-G 12V200AH 详情 页 09
