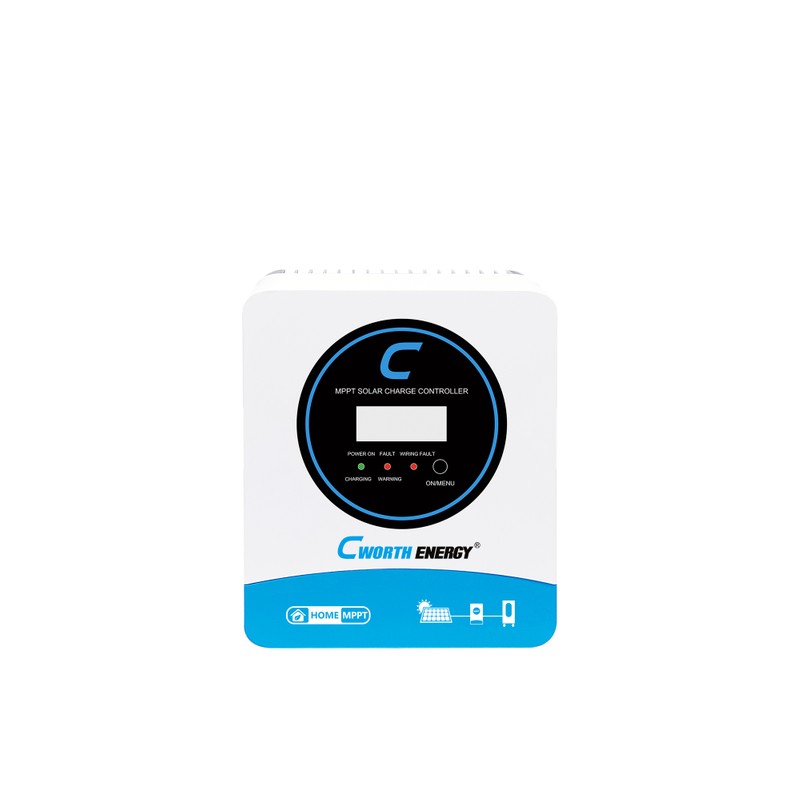

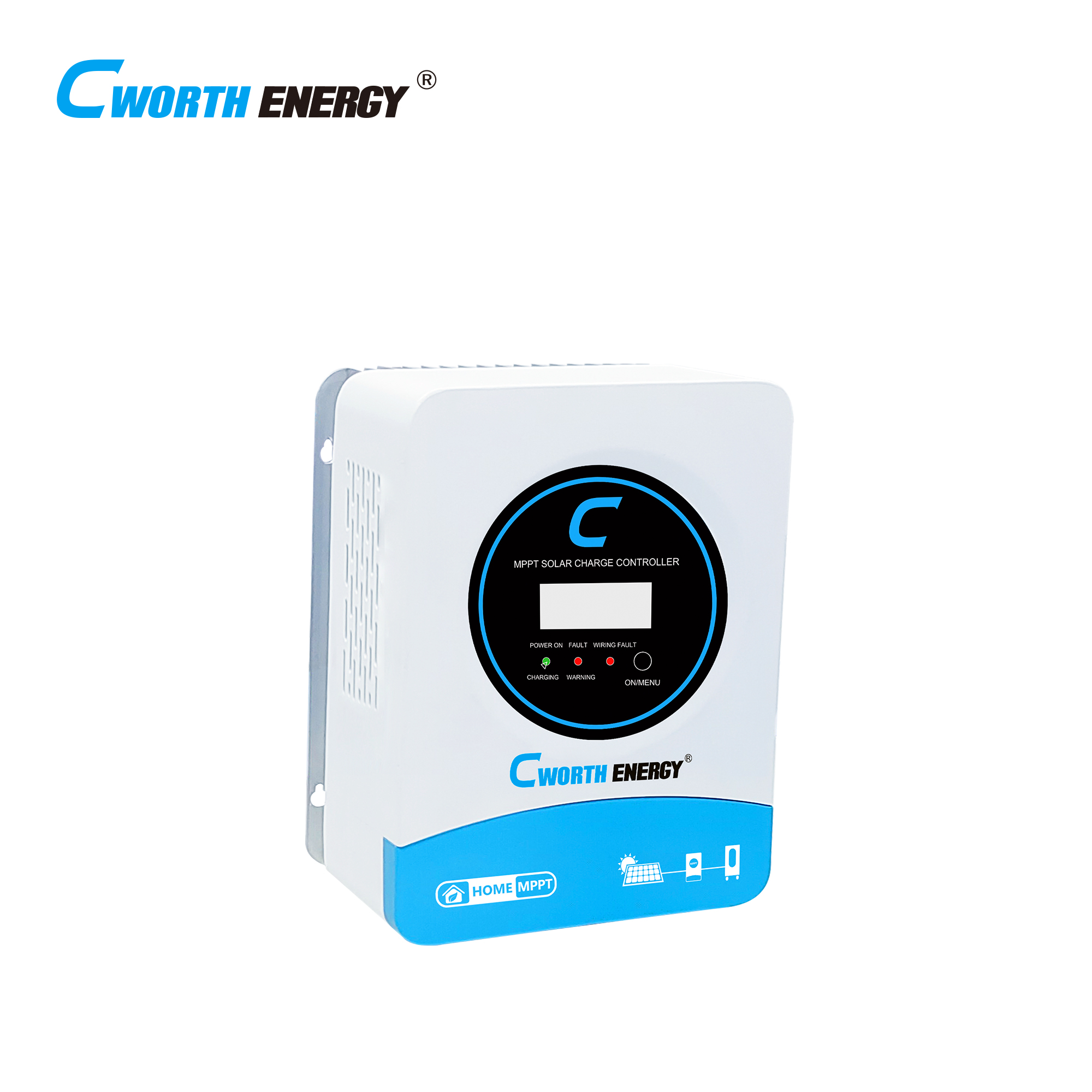

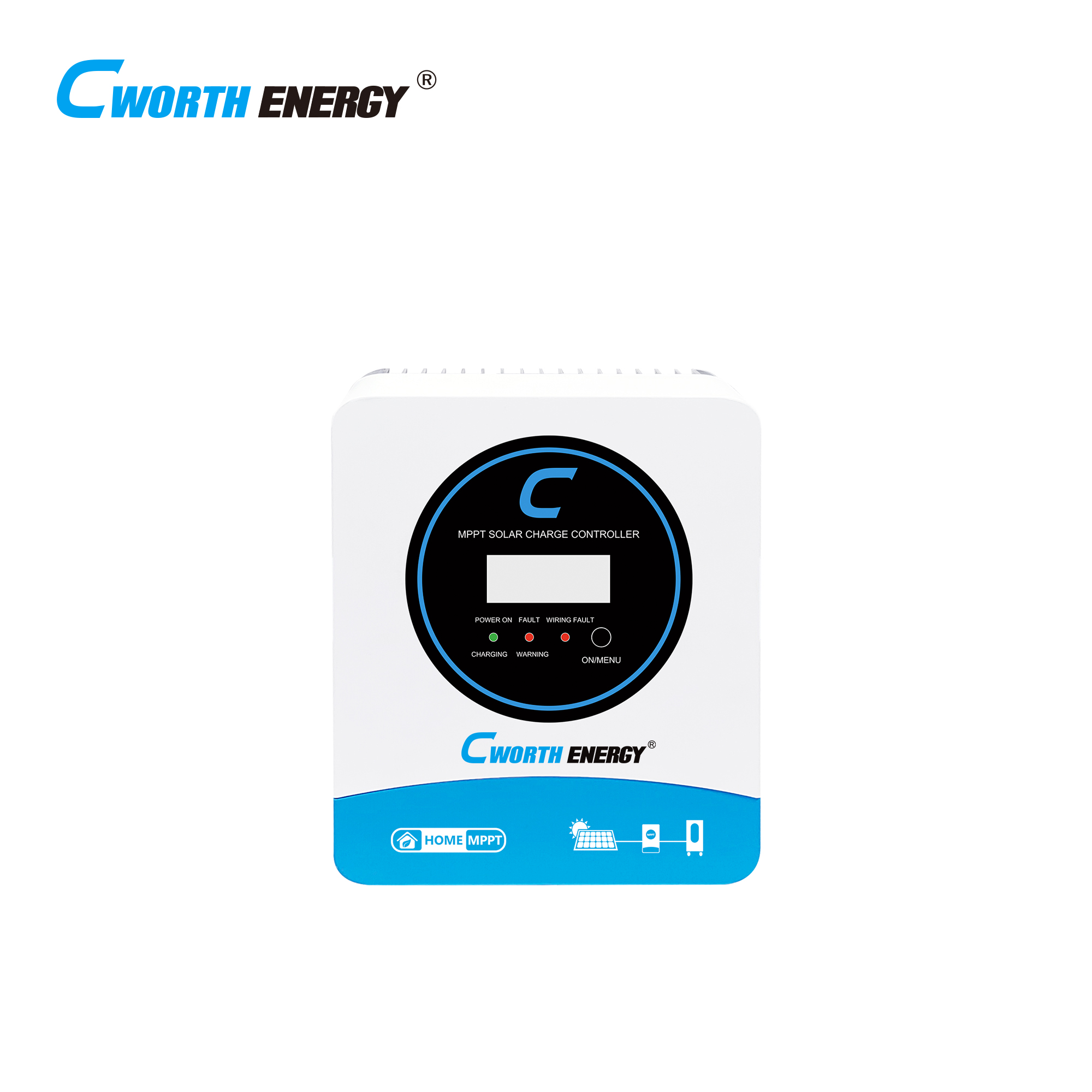

CE-M4048
Cworth Energy
SPECIFICATION：
| Model | CE-M4048 |
| Maximum Battery Current | 40A |
| Battery Type | Use-Defined/AGM/FLD/LIB |
| System Voltage | 12V/24V/48V DC(Auto detection) |
| PV Start-up Voltage | 25 |
| Maximum Solar input Voltage | 200V |
| PV Array MPPT Voltage Range | 25/30/60V-180VDC(For 12V/24V/48V-system) |
| Maximum Solar panel input Power | 12V-1130W |
| 24V-2260W | |
| 48V-4520W | |
| Charging Algorithm | 3-Step |
| Charging stages | Bulk, Absorption, Float |
| Operation Temperature Range | 0°C to 50°C |
| Humidity | 0%-90% |
| Maximum Efficiency | ＞98% |
| Net Weight | 2.5kg |
| Product Dimension | 211x171x112mm |
