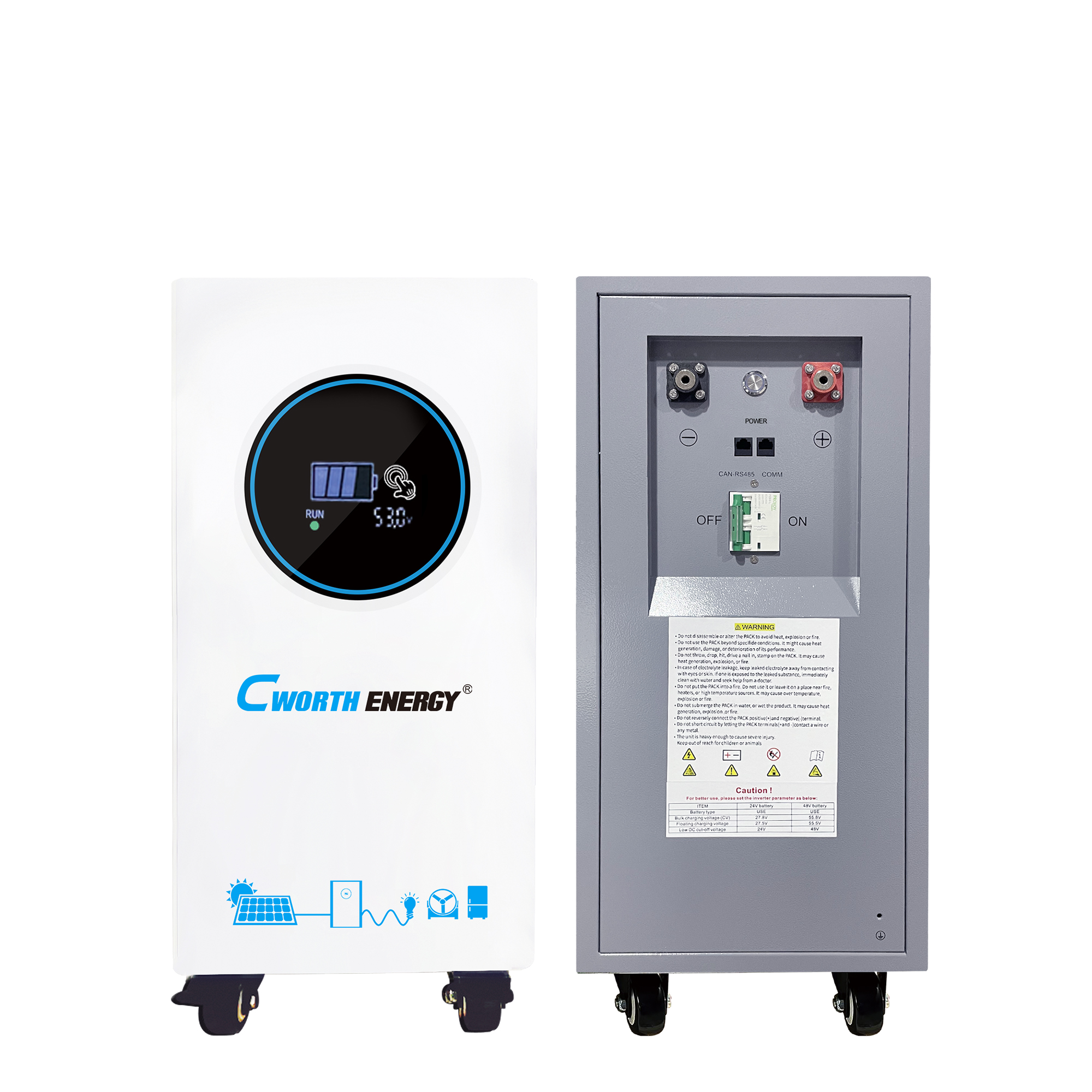

LiFePO4 Battery LBF-48300C 48V

Availability:
Quantity:


LBF-48300C海报2(2023.07.31)

性能部分

家用储能


Specification:

Model CE-LBF-48300C
Capacity 15KWH
Voltage 48V
Normal voltage 51.2V
Normal voltage range 48-57.6V
Charge cut-off voltage 57.6V
Discharge cut-off voltage 48V
Max. Charge & discharge current 200A
Recommend Charge & discharge current ≤100A
Normal output power 5120W
Max. Output power 10240W
Parallel connection amount 1-6
Ingress protection IP21
Cycle times 6000@80% DOD, 25°C, 0.5C
Working temperature -10~60℃
Net weight 126.5kg
Gross Weight 145.2kg
Product dimension 650*323*725mm
Package dimension 690*360*860mm

LBF-48300(48250)尺寸表
