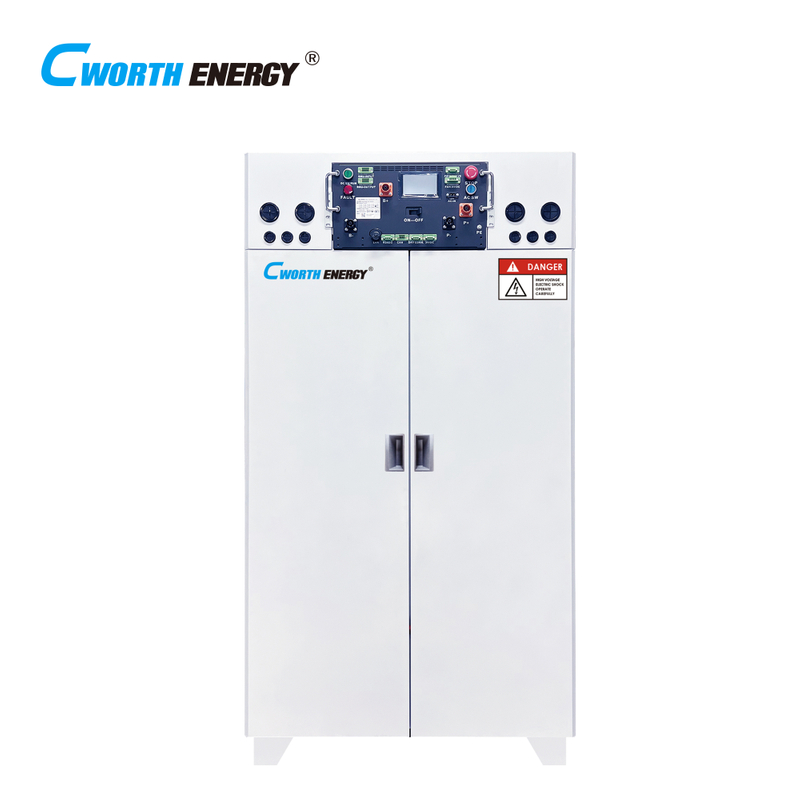

CE-LBV-300512
Cworth Energy
SPECIFICATION：
| Model | CE-LBV-300512 |
| Battery Capacity | 150KWH |
| Cell Type | LFP（LiFePO4） |
| Number of Modules | 10 |
| Battery Cell Configuration | （16S）10S1P |
| Rated Voltage | 512V |
| Minimum Voltage | 448V |
| Working Voltage Range | 448-584V |
| Maximum Voltage | 584V |
| Suggested Charging and Discharging Currents | ≤60A |
| Maximum Charging and Discharging Current | 100A |
| Maximum Power of Charging and Discharging | 50KW |
| Working Temperature Range | Charge:0~60℃ Discharge:-30~60℃ |
| Relative Humidity (RH) | 0~95% |
| Optimal Storage Temperature Range | 10~35℃ |
| Maximum Working Altitude (m) | 2000 |
| Communication Method | CAN |
| Number of Cycles | ≥6000@80%DOD，25℃ 0.5C |
| Installation Method | Ground installation |
| Protection Grade | IP21 |
| Transportation | UN38.3 |
